Oil Compatible Rubber Expansion Joint Featuring Low Maintenance and ODM Customized Support for Durable Pipeline Systems

제품 상세정보

브랜드 이름: ZhiCheng

인증: ISO9001

모델 번호: KXT

지불과 운송 용어

최소 주문 수량: 1

가격: 5-105

포장 세부 사항: 버블랩, 판지 상자, 나무 상자

배달 시간: 7일

지불 조건: 배송 전 전액 지불

공급 능력: 8000개 부분 / 달

가장 좋은 가격 을 구하라

지금 접촉하세요

상술

기술

상술

강조하다:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              oil compatible rubber expansion joint, low maintenance rubber expansion joint, ODM customized pipeline expansion joint


공칭 크기:	DN25 - DN3000	플랜지 재질:	탄소강
메디아:	공기, 물, 기름, 약산 및 염기	헤드 코드:	동일한
플랜지의 표준:	DIN, JIS, ANSI 등	작동 압력:	6~40바르
Porduct 이름:	티 벨로 익스팬션 조인트	서비스:	OEM ODM

공칭 크기:	DN25 - DN3000
플랜지 재질:	탄소강
메디아:	공기, 물, 기름, 약산 및 염기
헤드 코드:	동일한
플랜지의 표준:	DIN, JIS, ANSI 등
작동 압력:	6~40바르
Porduct 이름:	티 벨로 익스팬션 조인트
서비스:	OEM ODM

기술

Oil Compatible Rubber Expansion Joint Featuring Low Maintenance and ODM Customized Support for Durable Pipeline Systems

Oil and Acid Resistant Pn16 Carbon Steel Flexible Concentric Reducer Rubber Coupling

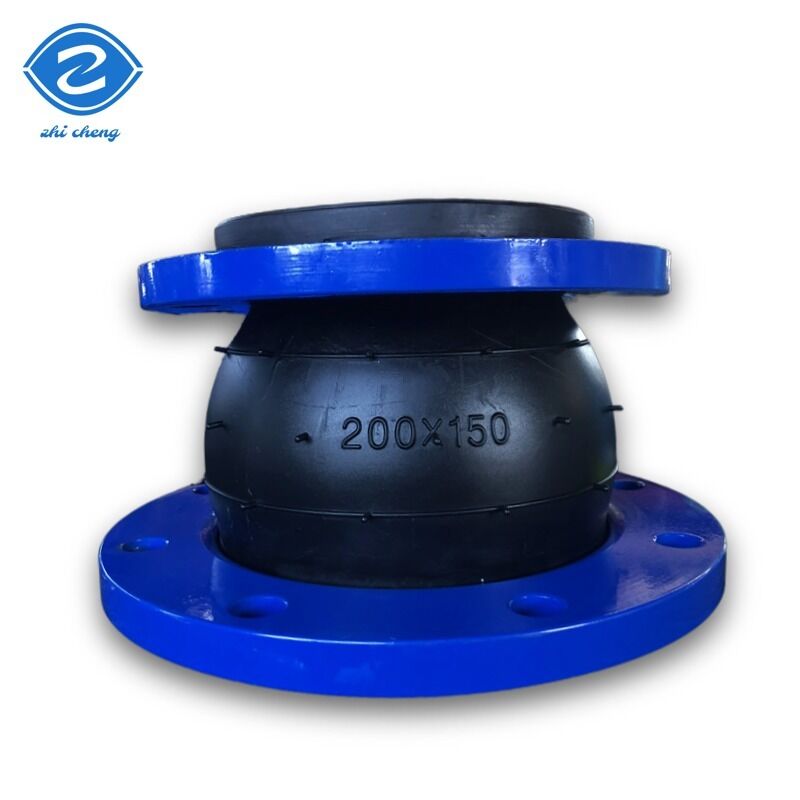

A concentric but differently sized rubber expansion joint is a flexible compensating element used for connecting

pipes of different diameters. The centerlines of its two flanges coincide (concentric), but the diameters are different

(DN200 to DN150). It compensates for displacement through its rubber body.

Key Features:

Good elasticity for vibration and noise reduction
SS304 flange connection
Single sphere rubber expansion bellows design

Why Choose ZHICHENG Products?

24 hours online service - anytime, anywhere support
100% quality inspection before shipment
Strong production capability and strict quality control

Material Specifications

No	Name	Material
1	Outer/inner rubber	NR, EPDM, NBR, Neoprene etc.
2	Frame	Nylon cord fabric
3	Pressurized ring	Steel wire strand
4	Flange	Carbon steel galvanized, paint ductile iron, stainless steel etc.

Operation Conditions

Parameter	Value
Working temperature	-15℃~80℃ (-30℃~150℃)
Working pressure	6-40 bars (PN6-PN40)
Test pressure	1.5 times of working pressure
Explosion pressure	2 times of working pressure
Applicable media	Air, water, sewage, sea water, acid, alkali, oil etc.

Main Connection Dimensions

Nominal diameter	Length (mm)	Axial displacement (mm)	Horizontal movement (mm)	Deflection angle (a1+a2)°	Special length (mm)
32 (1 1/4")	95	9	6	15°	130/150/200
40 (1 1/2")	95	10	6	15°	130/150/200
50 (2")	105	10	7	15°	130/150/200
65 (2 1/2")	115	13	7	15°	130/150/200
80 (3")	135	15	8	15°	130/150/200
100 (4")	150	19	10	15°	130/200
125 (5")	165	19	12	15°	130/150/200
150 (6")	180	20	12	15°	130/150/200
200 (8")	210	25	16	15°	130/150/200
250 (10")	230	25	16	15°	130/150/200
300 (12")	245	25	16	15°	130/150/200

Note: Size range from DN25-3000 are all available, special size and length can also be customized.

Please contact us for exact data.

Oil Compatible Rubber Expansion Joint Featuring Low Maintenance and ODM Customized Support for Durable Pipeline Systems 0

Product Description

Rubber expansion joints consist of inner and outer rubber, cord layer and steel wire strand,

which are vulcanized and then combined with metal flanges or loose sleeves of parallel joints.

It is widely used in various pipeline systems.

Oil Compatible Rubber Expansion Joint Featuring Low Maintenance and ODM Customized Support for Durable Pipeline Systems 1

The rubber expansion joints allow for four way movements, and they are molded from

synthetic rubber and nylon cord. This design reduces vibration and noise, and compensates

thermal expansion and contraction caused by temperature change.

Production

ZHICHENG has a strict quality control system, standard production processes,

and standardized factory testing to ensure every product meets customer requirements

and delivers high-quality performance.

Packaging & Shipping

Packaging

Inner package: plastic film with carton cases
Outer package: wooden cases (usually 1100mm×1100mm×1100mm)

Shipping

Transportation: by sea or by air.

Oil Compatible Rubber Expansion Joint Featuring Low Maintenance and ODM Customized Support for Durable Pipeline Systems 6

Product Installation

We provide complete installation instructions, notes, and maintenance guidelines with every order.

Below is an installation example of a DN1800 rubber expansion joint.

Oil Compatible Rubber Expansion Joint Featuring Low Maintenance and ODM Customized Support for Durable Pipeline Systems 9

Frequently Asked Questions

Q: Are you a trading company or a manufacturer?

A: We are manufacturers of rubber expansion joints, metal expansion joints, flexible hoses,

dismantling joints, trimmer joints, flange adapters and flanges with over 30 years experience.

Q: Do you have a catalogue?

A: Yes, we do. Please let us know your email or instant messenger and we will send you our catalogue.

Q: Can you provide drawings and technical information?

A: Yes, our specialist technical department will design and supply drawings and technical data.

Q: Do you provide samples? Are they free of charge or do you charge for them?

A: Yes, we can provide samples free of charge, but transport costs are borne by the customer.

Q: Can the products be manufactured to the customer's requirements?

A: Yes, the above specifications are standard specifications and we can design and manufacture as required.
